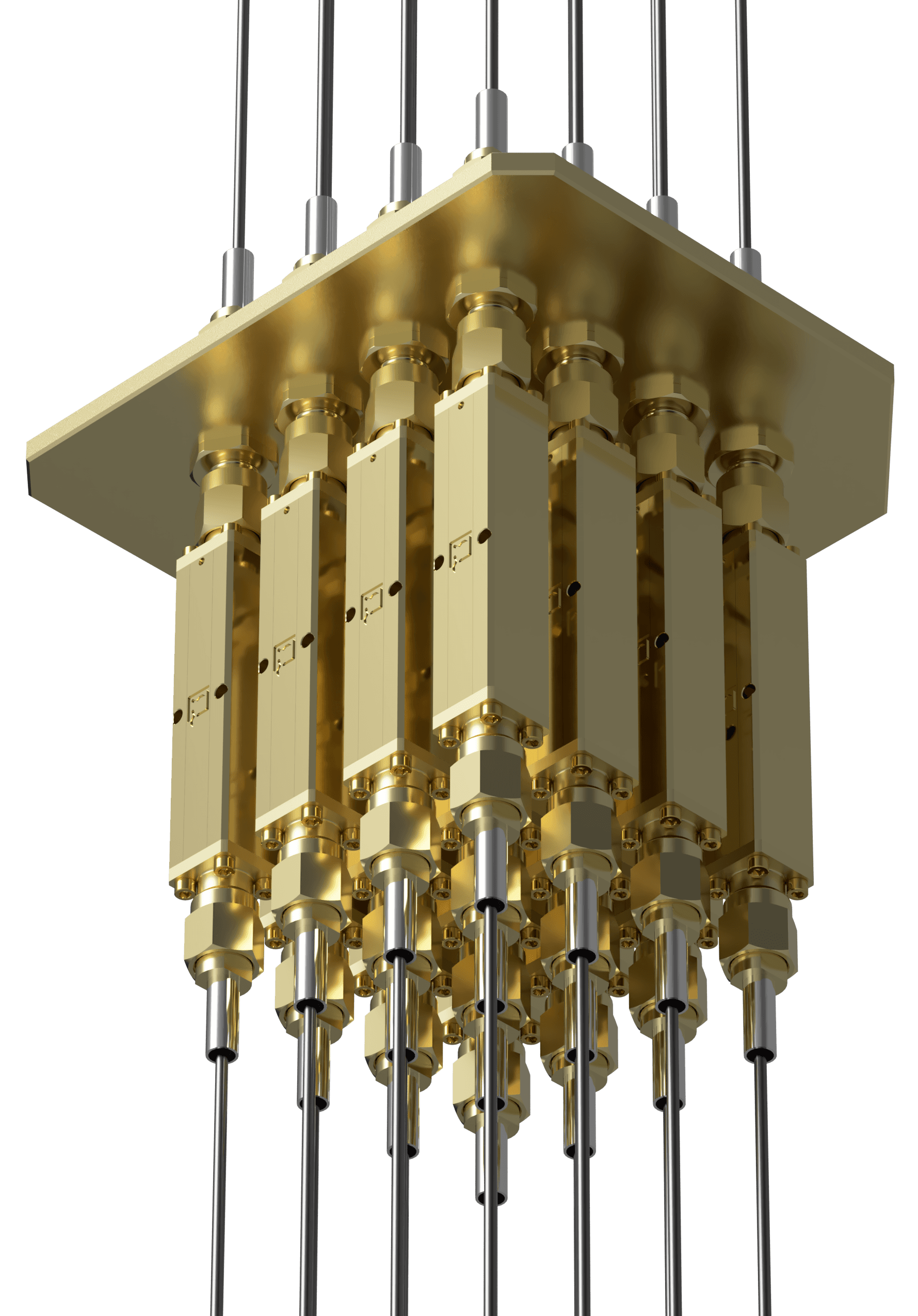

HERD-2

HERD-2 is a non-magnetic SMA inline infra-red blocking filter based on our High-Energy Radiation Drain technology (HERD).

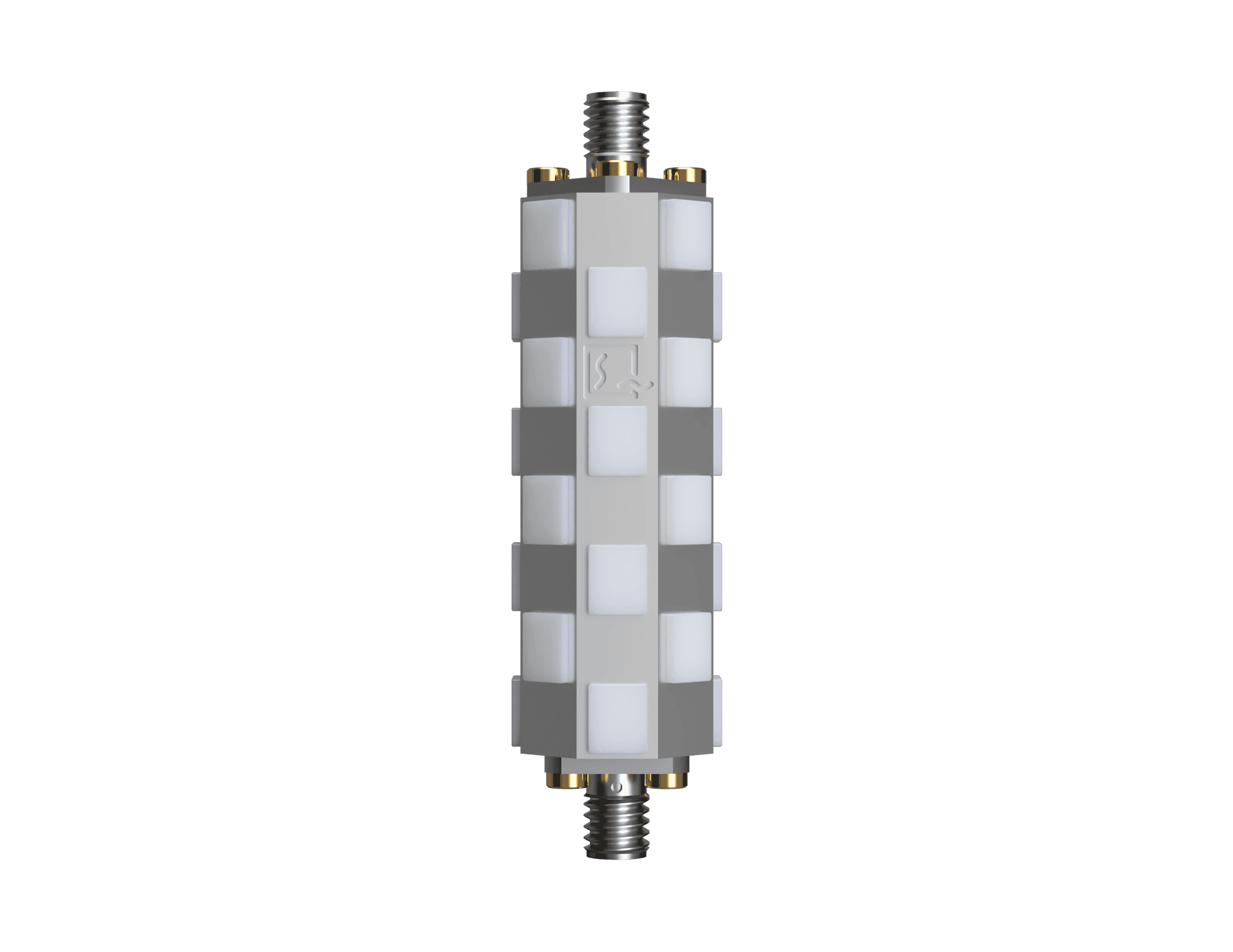

The HERD-2 filter is designed to be much more compact than its predecessor HERD-1, providing similar, ultra-low in-band losses with improved filtration in the stopband. The filter features an integrated carbon-based absorber, well thermalized to the gold-plated copper body.

A unique combination of a flat in-band response and exceptional high frequency absorption above 65 GHz

The data tells the story.

Passband

Design Impedance

Product Specifications

Absolute Max Ratings

Stopband

Insertion Loss (Passband)

Return Loss (Passband)

Insertion loss (Stopband)

Return Loss (> 20 GHz)

*Contact Sweden Quantum for alternative configurations

RF Connectors

DC-13.5 GHz

70-145 (min.) GHz

Typ. < 0.15 dB (DC-8GHz)

Typ. > 20 dB (DC-13.5 GHz)

Typ. > 7 dB

Typ. > 65 dB (70-120 GHz)

50 Ω

Male/Female SMA, SMP, SMPM, SMPS *

Parameter

Min

Max

Operating Temperature

0 K

320 K

RF Input Power

30 dBm

Mechanics

Length

63 mm

Width

9.525 mm
